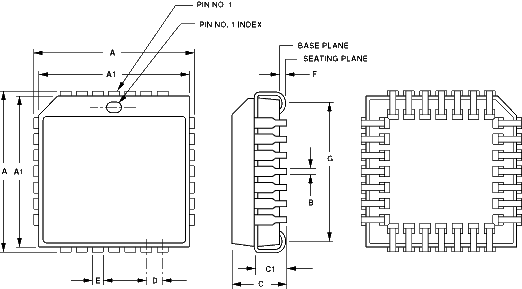

MA2065

28-PIN PLASTIC PLCC SURFACE MOUNT~ Q, QP PACKAGE SUFFIX

DIMENSIONS
	INCHES		MILLIMETERS		NOTES
	MIN	MAX	MIN	MAX
A	.485	.495	12.32	12.57
A1	.450	.456	11.43	11.58	1
B	.013	.021	0.33	0.53
C	.170	.180	4.32	4.57
C1	.100	.110	2.54	2.79
D	.050 BSC		1.27 BSC		2
E	.026	.032	0.66	0.81
F	.020	-	0.51	-	3, 4
G	.390	.430	9.91	10.92

NOTES:

1. 'A1' DOES NOT INCLUDE MOLD FLASH OR PROTRUSIONS. MOLD FLASH OR PROTRUSIONS SHALL NOT EXCEED 0.006 IN. PER SIDE.

2. THE BASIC LEAD SPACING IS 0.050 IN. BETWEEN CENTERLINES. EACH LEAD CENTERLINE SHALL BE LOCATED WITHIN ±0.004 IN. OF ITS EXACT TRUE POSITION.

3. 'F' IS MEASURED FROM THE SEATING PLANE TO THE BASE PLANE.

4. LEADS SHALL BE COPLANAR WITHIN 0.004 IN. AT THE SEATING PLANE.

5. CONTROLLING DIMENSION: INCHES. MILLIMETERS SHOWN FOR REFERENCE ONLY.
