48-PIN LQFP ~ FQ and FQP PACKAGE SUFFIX
DIMENSIONS
  MILLIMETERS INCHES
MIN MAX MIN MAX
A - 1.60 - .063
A1 0.05 0.15 .002 .006
A2 1.35 1.45 .053 .057
b 0.17 .0.27 .007 .011
b1 0.17 0.23 .007 .009
C 0.09 0.20 .003 .008
C1 0.09 0.16 .003 .006
D 9.00 BSC .354 BSC
D1 7.00 BSC .276 BSC
E 9.00BSC .354 BSC
E1 7.00 BSC .276 BSC
e 0.50 BSC .020 BSC
L 0.45 0.75 .018 .030
R1 0.08 - .003 -
R2 0.08 0.20 .003 .008
S 0.20 - .008 -

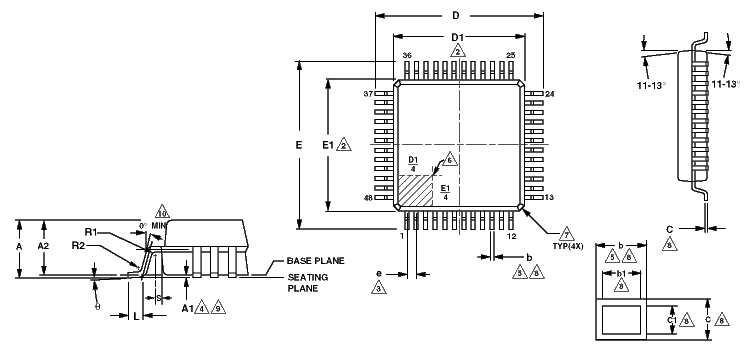

mb2117
NOTES:
1. CONTROLLING DIMENSION: MILLIMETERS. INCHES SHOWN FOR REFERENCE ONLY.
{short description of image} ‘D1’AND ‘E1’ DO NOT INCLUDE MOLD FLASH OR PROTRUSIONS. MOLD FLASH OR PROTRUSIONS SHALL NOT EXCEED 0.25mm PER SIDE. 'D1' AND 'E1' INCLUDE MOLD MISMATCH.
{short description of image} THE BASIC LEAD SPACING IS 0.50mm BETWEEN CENTERLINES. EACH LEAD CENTERLINE SHALL BE LOCATED WITHIN ±0.10mm OF ITS EXACT TRUE POSITION.
4. LEADS SHALL BE COPLANAR WITHIN 0.08mm AT THE SEATING PLANE.
{short description of image} DIMENSION ‘b’ DOES NOT INCLUDE DAMBAR PROTRUSION. THE DAMBAR PROTRUSION(S) SHALL NOT CAUSE THE LEAD WIDTH TO EXCEED ‘b’ MAXIMUM BY MORE THAN 0.08mm. DAMBAR CAN NOT BE LOCATED ON THE LOWER RADIUS OR THE LEAD FOOT. MINIMUM SPACE BETWEEN PROTRUSION AND AN ADJACENT LEAD IS 0.07mm.
{short description of image} DETAILS OF PIN1 IDENTIFIER ARE OPTIONAL BUT MUST BE LOCATED WITHIN THE ZONE INDICATED.
{short description of image} EXACT SHAPE AND SIZE OF THIS FEATURE IS OPTIONAL.
8 THESE DIMENSIONS APPLY TO THE FLAT SECTION OF THE LEAD BETWEEN 0.10mm AND 0.25mm FROM THE LEAD TIP.
{short description of image} ‘A1’ IS DEFINED AS THE DISTANCE FROM THE SEATING PLANE TO THE LOWEST POINT OF THE PACKAGE BODY (BASE PLANE).
{short description of image} THE TOP PACKAGE BODY MAY BE SMALLER THAN THE BOTTOM PACKAGE BODY SIZE BY AS MUCH AS 0.15mm.
