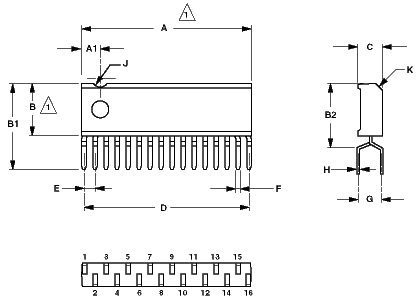

| 16-PIN ZIG ZAG INLINE ~ Z
PACKAGE SUFFIX |
| DIMENSIONS |
|
| |
MILLIMETERS |
INCHES |
NOTES |
| MIN |
MAX |
MIN |
MAX |
|
| A |
19.40 |
19.60 |
.764 |
.772 |
|
| A1 |
- |
2.00 |
- |
.079 |
|
| B |
5.70 |
5.90 |
.224 |
.232 |
|
| B1 |
9.40 |
10.40 |
.370 |
.409 |
|
| B2 |
6.50 |
7.50 |
.256 |
.295 |
|
| C |
2.70 |
2.90 |
.106 |
.114 |
|
| D |
18.75 |
19.35 |
.738 |
.762 |
|
| E |
1.07 |
1.47 |
.042 |
.058 |
|
| F |
0.45 |
0.65 |
.018 |
.026 |
|
| G |
2.50 |
3.00 |
.098 |
.118 |
|
| H |
0.23 |
0.35 |
.009 |
.014 |
|
| J |
1.00 BSC |
.039 BSC |
RAD. |
| K |
1.00 BSC |
.039 BSC |
CHAM. |
| |
|
|
|
|
|
|
 |
NOTES:
 |
DOES NOT INCLUDE MOLD
FLASH OR PROTRUSIONS. MOLD FLASH OR
PROTRUSIONS SHALL NOT EXCEED
0.15mm (0.006 IN.) PER SIDE.
|
|
