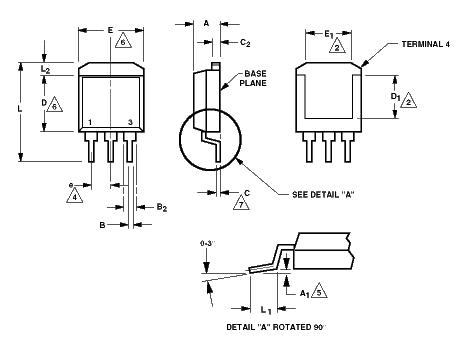

3-PIN PLASTIC TO-263 POWER SURFACE MOUNT ~ TD PACKAGE SUFFIX
DIMENSIONS
  INCHES MILLIMETERS
  MIN NOM MAX MIN NOM MAX
A .160 .175 .190 4.06 4.44 4.83
A1 .000 .002 .004 0.00 0.051 0.10
B .020 .032 .039 0.51 0.81 0.99
B2 .045 .050 .055 1.14 1.27 1.40
C .018 - .029 0.46 - 0.74
C2 .045 .050 .055 1.14 1.27 1.40
D .340 .360 .380 8.64 9.14 9.65
D1 .315 - - 8.00 - -
E .380 .395 .405 9.65 10.03 10.44
E1 .245 - - 10.44 - -
e .100 BSC 2.54 BSC
L .575 .600 .625 14.61 15.24 15.88
L1 .090 .100 .110 2.29 2.54 2.79
L2 - - .055 - - 1.40
ma2150
NOTES:
1 CONTROLLING DIMENSION : INCHES. MILLIMETERS SHOWN FOR REFERENCE ONLY.
{short description of image} D1 AND E1 ESTABLISH A MINIMUM MOUNTING SURFACE FOR TERMINAL 4.
3 TAB CONTOUR OPTIONAL WITHIN DIMENSION E AND ZONE L2.
4 THE BASIC LEAD SPACING IS 0.100 INCHES BETWEEN CENTERLINES. EACH LEAD CENTERLINE SHALL BE LOCATED WITHIN ±0.010 INCHES OF ITS EXACT TRUE POSITION.
{short description of image} A1 IS MEASURED FROM THE LEAD TIP TO THE BASE PLANE.
{short description of image} D AND E DO NOT INCLUDE MOLD FLASH ON PROTRUSIONS. MOLD FLASH OR PROTRUSIONS SHALL NOT EXCEED 0.006 IN. PER SIDE.
{short description of image} LEAD TIPS SHALL BE COPLANAR WITHIN 0.004 INCHES.
