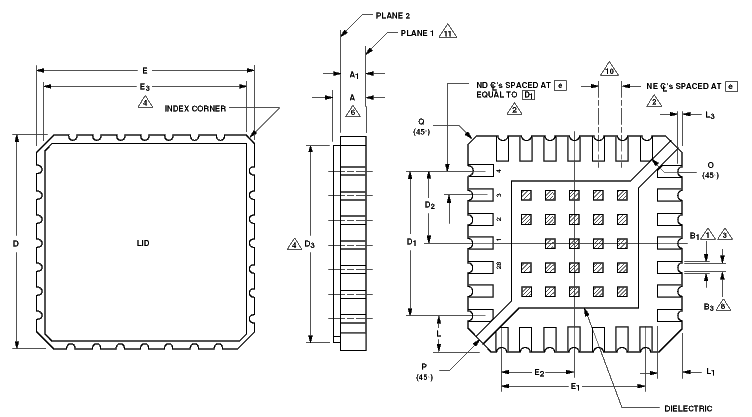

1. |
A MINIMUM
CLEARANCE OF 0.015 IN. (0.38mm) SHALL BE
MAINTAINED BETWEEN ADJACENT TERMINALS.
|
|
'N' IS THE
MAXIMUM QUANTITY OF TERMINAL POSITIONS. 'ND'
AND 'NE' ARE THE NUMBERS OF TERMINALS ALONG
THE SIDES OF LENGTH 'D' AND 'E' RESPECTIVELY.
|
|
ELECTRICAL
CONNECTION TERMINALS ARE REQUIRED ON PLANE 1
AND OPTIONAL ON PLANE 2. HOWEVER, IF PLANE 2
HAS SUCH TERMINALS THEY SHALL BE ELECTRICALLY
CONNECTED TO OPPOSING TERMINALS ON PLANE 1.
|
|
A MINIMUM
CLEARANCE OR 0.015 IN. (0.38mm) SHALL BE
MAINTAINED BETWEEN A METAL LID AND OTHER
METAL FEATURES (E.G., PLANE 2 TERMINALS,
METALLIZED CASTELLATIONS, ETC.) THE LID SHALL
NOT EXTEND BEYOND THE EDGES OF THE BODY.
|
5. |
THE INDEX
FEATURE FOR NUMBER 1 TERMINAL IDENTIFICATION
ON PLANE 1 IS DEFINED BY DELETION OF THE
THERMAL PAD AJACENT TO TERMINAL 1.
|
|
DIMENSION 'A'
CONTROLS THE OVERALL PACKAGE THICKNESS.
|
7. |
CONTROLLING
DIMENSION: INCHES. MILLIMETERS SHOWN FOR
REFERENCE ONLY.
|
|
CASTELLATIONS
ARE REQUIRED ON BOTTOM TWO LAYERS.
CASTELLATIONS IN THE TOP LAYER ARE OPTIONAL.
|
9. |
WHEN SOLDER
DIP LEAD FINISH APPLIES, SOLDER BUMP HEIGHT
SHALL NOT EXCEED 0.007 INCHES AND SOLDER BUMP
COPLANARITY SHALL NOT EXCEED 0.006 INCHES.
|
|
THE BASIC
TERMINAL SPACING IS 0.050 INCHES BETWEEN
CENTERLINES. EACH TERMINAL CENTERLINE SHALL
BE LOCATED WITHIN ±0.004 INCHES OF ITS EXACT
TRUE POSITION.
|
|
PLANE 1 IS
THE HEAT RADIATION SURFACE. THIS SURFACE IS
METALIZED WITH A CHECKERBOARD PATTERN OF
THERMAL CONDUCTION PADS. THE PAD CENTERLINES
ARE ALIGNED WITH TERMINAL CENTERLINES.
THERMAL PADS ARE NOT ELECTRICALLY TIED TO ANY
TERMINAL.
|
